PLC / PAC / RTU / MODULAR SYSTEMS

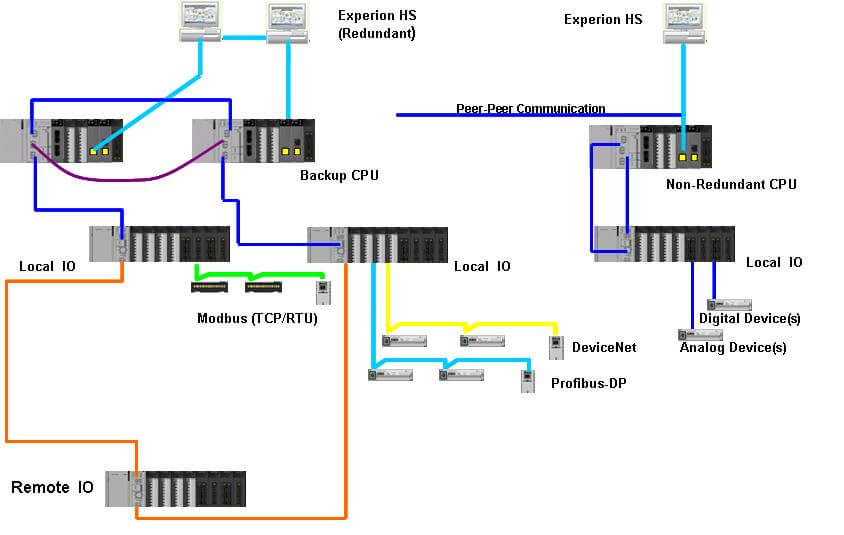

Masterlogic PLC

Key Features

• Powerful and versatile processors – high speed i.e.42 nanosec/step, 10MB program memory,
  4MB system memory, 2MB data memory, 16MB built-in flash memory for program & data
  backup
  • Full redundancy (CPU, power and network) – same CPU can operate in both redundant &
    non-redundant mode.
  • Compact pocket size modules – rack room and cabinet space saver
  • IEC61131-3 standard programming – LD/ SFC/ ST/ IL language option
  • A vast library of standard function blocks and support for creating new or user-defined
    function blocks
  • Over 50 types of I/O modules – digital/ analog (isolated), HSC, RTD, TC, position/ motion
    control
  • Open network protocols with field devices – Profibus™ DP, DeviceNet™, MODBUS (Ethernet
    & Serial)
  • Open communication with external systems – Ethernet, fiber-optic (100MBPS), serial
    RS232/RS422
  • Peer-to-peer communications between PLCs – Dedicated Ethernet 100 MBPS or Fiber-optic
    option
  • Smart I/O modules (DIN rail) on open protocols – Profibus-DP, DeviceNet, MODBUS
    expanding I/O capacity, remote I/O applications or as RTUs for other manufacturers’ PLC
  • Hot swapping, Interrupt programs, user-defined Events (for SOE data in millisec)
  • Integration with Experion PKS, Experion HS, Experion LS architecture (including system
    diagnostics and clock synchronization) and SCADA systems
  • Self-diagnostics – network diagnostics, system logs, Auto scan, monitoring system
  • Engineer friendly software – ease of configuration and trouble-shooting
  • Program simulator to test programs offline without PLC/CPU

| Masterlogic Brochure| Modular Systems from Honeywell Brochure|

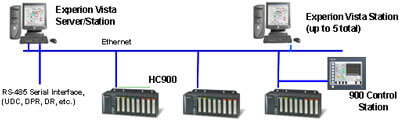

HC900 Hybric Control

Key Features

The HC900 controller provides a cost-effective platform for combining loop and logic control. The HC900 is ideal for unit process applications that require a combination of analog process control functions and discrete control actions. When networked with the Experion HS or Experion LS system for supervisory control, the HC900 controller provides an ideal unit controller for standalone processes, skid-mounted systems and other periphery operations in a process facility.
The HC900 controller offers a blend of analog process, logic and sequencing control algorithms. There are no preset limits on the number of times a function block type may be instantiated in a controller (limit based on memory availability and required scan rate). Features include:

• 1,920 I/O points
• Compact 4, 8 or 12 I/O slot rack sizes
• Open Ethernet network connectivity
• Peer-to-peer data exchange
• Automated loop tuning
• Setpoint programmers
• Setpoint schedulers with multiple ramp/soak outputs andultiple 64-step sequencers

This powerful platform, combined with a tightly integrated touch screen operator interface (900 Control Station) that supports a variety of preformatted displays with trending and data storage, is easily applied across many industries. The HC900 is configured using PC-based Windows configuration software (Hybrid Control Designer), which utilizes graphical function block configuration techniques and supports run-mode edit capability to help minimize process interruptions and provides advanced monitoring features.

The HC900 redundancy capability allows it to be used in applications where maximum process uptime is needed. The redundant platform provides redundant CPUs, power supplies and network communications for additional process security.

The HC900 controller and I/O platform, in tandem with the Hybrid Control Designer PC-based software, shortens design time and simplifies control strategy development. This results in a total installed cost advantage with reduced engineering and process startup time.

| HC900 Specifications | HC900 Controlware | HC900 I/O Specifications | HC900 Control Station |

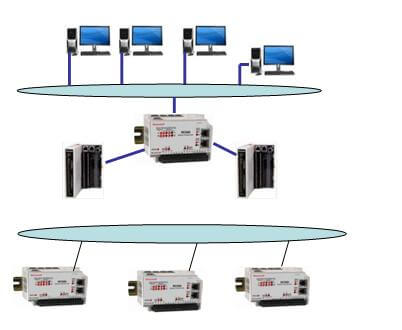

RC500 RTU

Key Features

• Multiple RTU Models to Suit Specific Application Needs
• Endures Tough Environments and Low Power Situations
• Flexible Communication Ports and Protocol Options
• Simple I/O Transfers Enable Easy Information Exchanges
• Robust Datalogging Ensures Data Availability
• Scalable Architecture and Flexible I/O Expansion Options
• RC500 I/O Toolkit Simplifies RTU and I/O Configuration
• ISAGRAF Enables Effective and Fast RTU Programming


  |RC500 Specifications |
